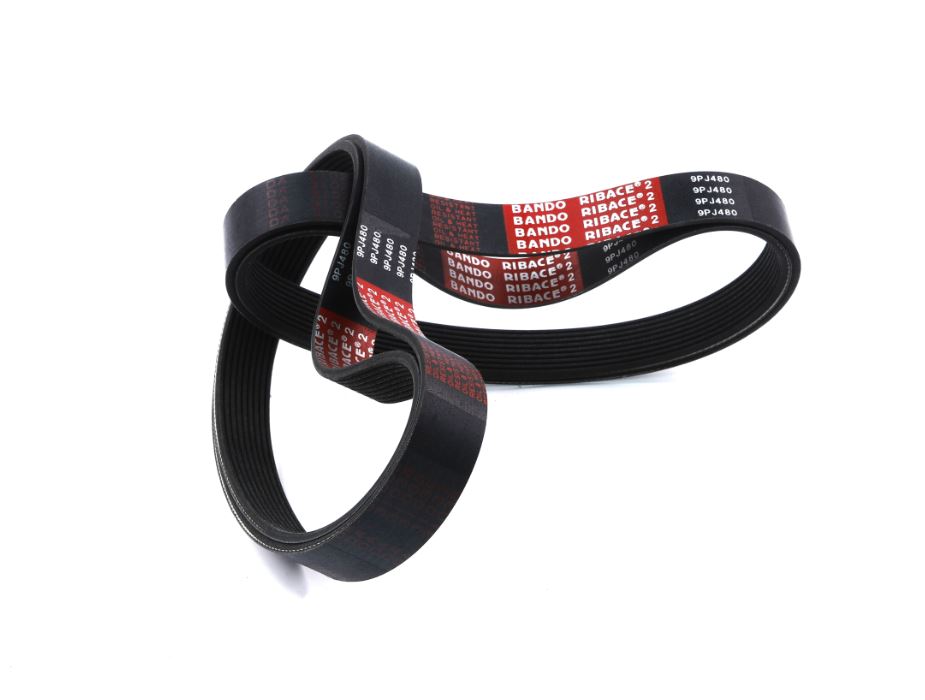

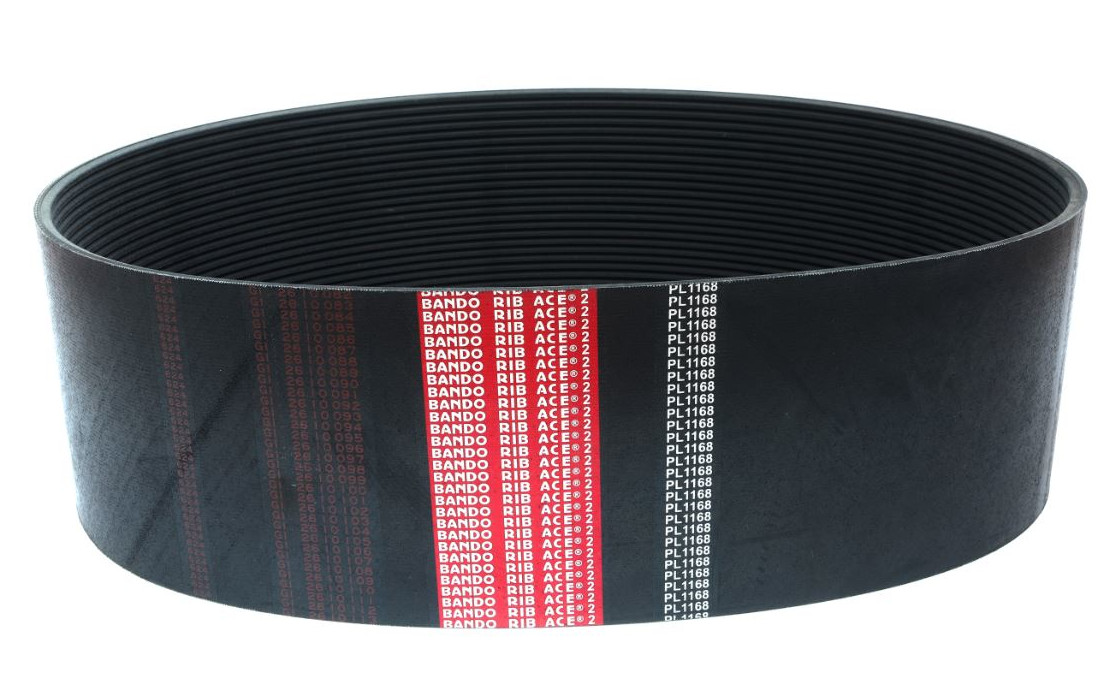

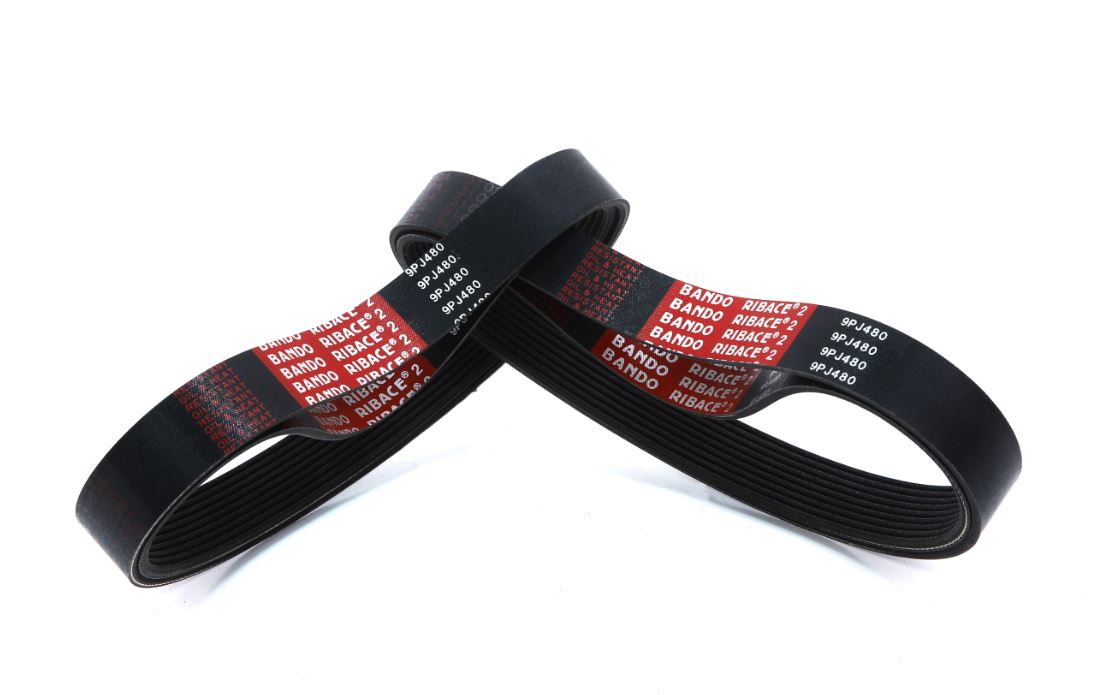

V-ribbed belts with high-power transmission capabilities

Features

  • Power transmission can be downsized to allow for small pulley diameter of 50 mm
  • High-power transmission (up to a belt speed of 50 m/s)
  • The ribs are formed by grinding, so transmission is smooth and vibration-free
  • Narrower than V-belts for efficient power transmission, with little power loss due to bending stresses
  • Compared with V-belts, there is little belt deformation and the belt does not settle into the pulley groove
  • Less maintenance than V-belts, as tension is better maintained

Applications:

  • Industrial machinery requiring compact, high-speed transmission, such as NC lathes, bench grinders, floor buffers, etc.

Sizes:

Effective length

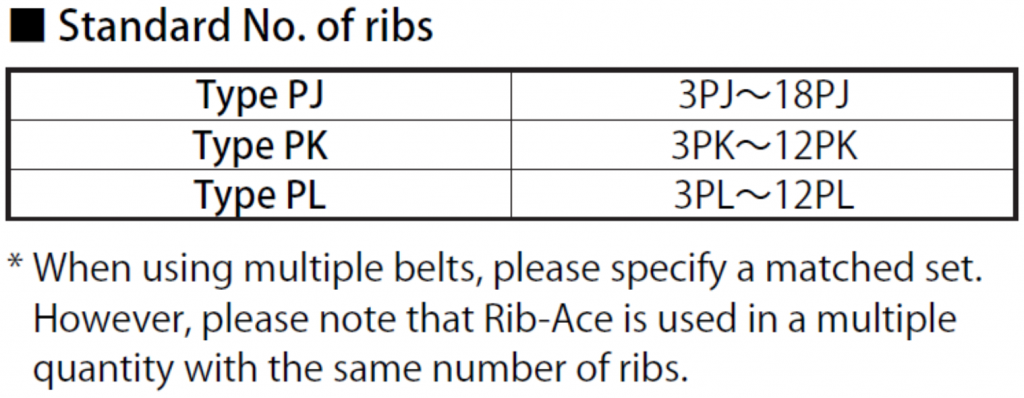

Type PJ  Type PK  Type PL
273 887 600 1220 540 1520
294 911 615 1250 605 1555
332 937 630 1280 655 1645
353 962 650 1320 700 1720
401 988 670 1360 730 1750
454 1013 690 1400 825 1850
480 1089 710 1450 850 1900
502 1140 730 1500 870 1975
530 1165 750 1550 875 2065
556 1191 775 1600 880 2115
567 1201 800 1650 905 2190
594 1242 825 1700 915 2360
607 1318 850 1750 950 2470
619 1343 875 1800 975 2575
634 900 1850 1000 2695
657 925 1900 1035 2840
704 950 1950 1050 3045
708 975 2000 1055
759 1000 2120 1070
777 1030 2240 1190
797 1060 2360 1240
817 1090 2500 1305
835 1120 2650 1340
852 1150 2800 1365
861 1180 3000 1445

Products and Specifications

Click ‘Inquire Now’ to send us your requirement

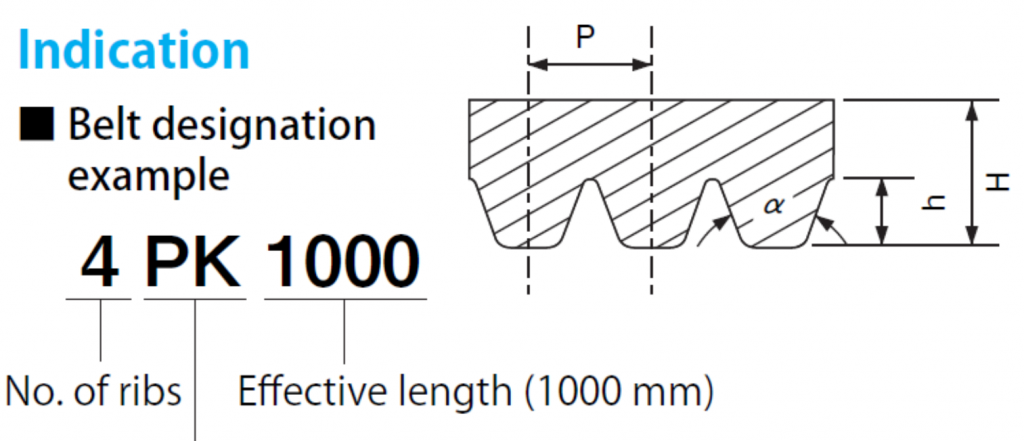

Product TypeP (MM)H (MM)h (MM)a (°)Inquire Now
Type PJ2.343.41.340Inquire Now!
Type PK3.564.3240Inquire Now!
Type PL4.706.03.340Inquire Now!
