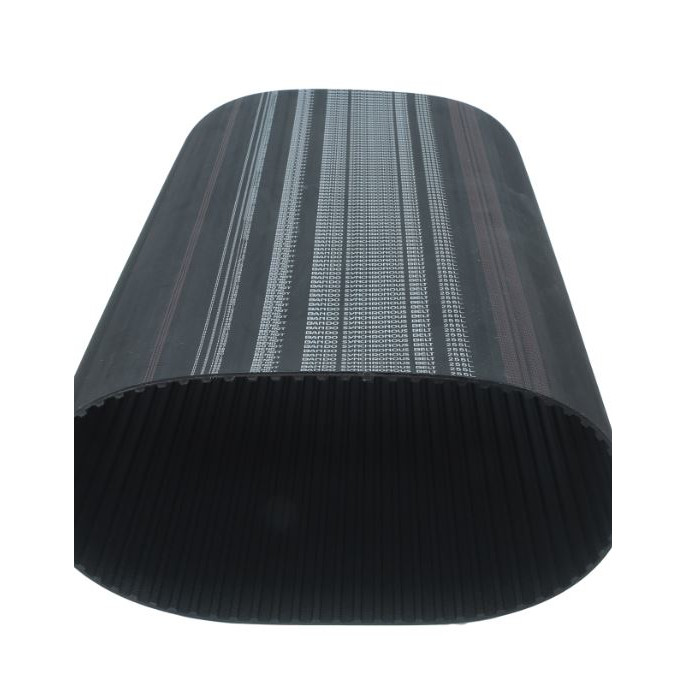

Standard synchronous transmission belts, combining the attributes of gears, chains and belts

Features

  • Precise mesh between belt and pulley
  • No lubrication required; quiet operation without metal-to-metal contact
  • High initial tension is not required, so smaller bearings and motors can be used

Applications:

  • We produce Synchro Belts for specialized as well as standard applications, so they are available for widespread use in synchronous transmission applications
  • XH, XXH Synchro Belts for high load power transmission applications
  • Oil resistant Synchro Belts (for applications where oil is present)
  • Heat resistant Synchro Belts
  • (for use in temperatures between 90°C and 120°C)
  • High electrical resistant Synchro Belts
  • (where insulation of 100MΩ or more is required)

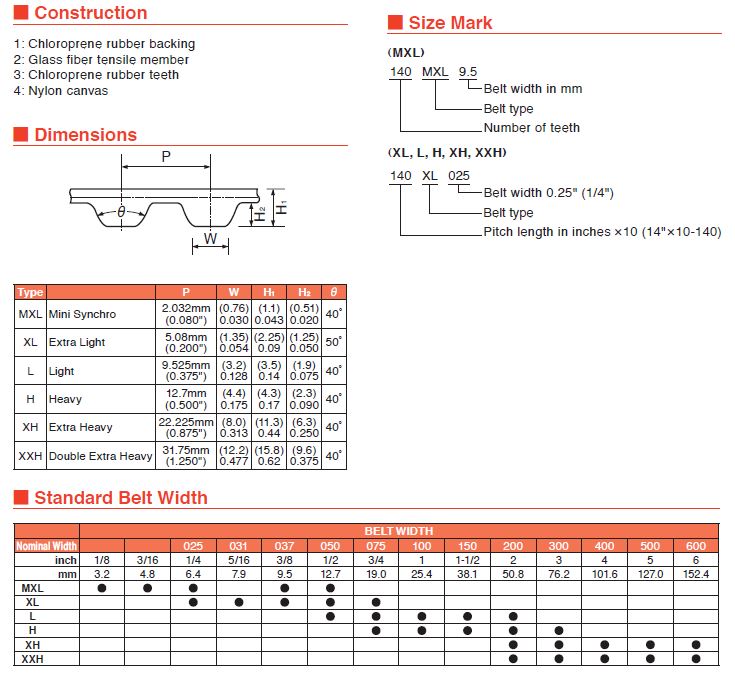

The nominal widths indicate the widths in millimeters for Type MXL and the widths in inches multiplied by a factor of 100 for Types XL to XXH.

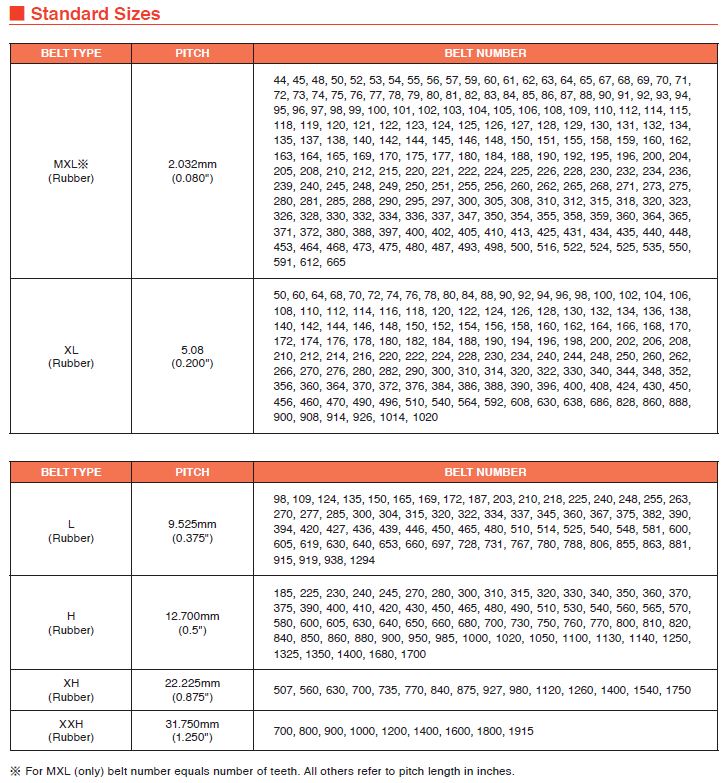

The belt nominal lengths indicate the number of teeth for Type MXL and the lengths in inches multiplied by a factor of 10 for Types XL to XXH.
