Applications
- For multiple V-belts drives exposed to pulsating or sheave shock loads, to avoid the belt from turnover or jump of the drive.
- Specially used for textile drying machines.
Features
The belt prevents abrasion caused by length differences among v-shaped Belt used on pulley. It can adjust the hold based on the need.

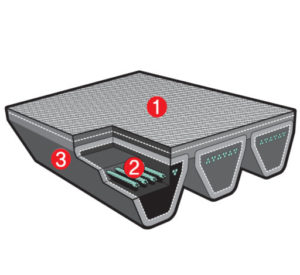

- The Top fabric assures high lateral rigidity, guiding the belt in a straight line.
- The tensile members are strongly bonded to the body of the belt resulting in equal load distribution and absorption of bending stress without cord deterioration.
- The bottom compression rubber provides proper cord support and full contact with the sheave – groove for equal loading and uniform ware and prevents the belt from coming off the drive.
Products and Specifications
Click ‘Inquire Now’ to send us your requirement
| Product Type | Top Width | Pitch Width | Height | Angle | Length Conversion | Size (inches) | Size (mm) | Factory Mark | |
|---|---|---|---|---|---|---|---|---|---|
| AJ | 13.6 | 15.6 | 10.0 | 40° | Li=La-63 | 47" - 197" | 1200 - 5000 | Li | Inquire Now! |
| BJ | 17.0 | 19.0 | 13.0 | 40° | Li=La-82 | 47" - 394" | 1200 - 10000 | Li | Inquire Now! |
| CJ | 22.4 | 25.5 | 16.0 | 40° | Li=La-100 | 71" - 394" | 1800 - 10000 | Li | Inquire Now! |
| DJ | 32.8 | 37.0 | 21.5 | 40° | Li=La-135 | 177" - 590" | 4500 - 15000 | Li | Inquire Now! |
| 3V | 9.7 | 10.3 | 9.7 | 40° | La=Li+63 | 47"-197" | 1200-5000 | La | Inquire Now! |
| 5V | 15.7 | 17.5 | 15.7 | 40° | La=Li+98 | 57"-394" | 1200-10000 | La | Inquire Now! |
| 8V | 25.4 | 28.6 | 25.4 | 40° | La=Li+157 | 118"-590" | 3000-15000 | La | Inquire Now! |
| SPZ | 10.5 | - | 10.0 | 40° | La=Li+63 | 59"-197" | 1500-5000 | La | Inquire Now! |
| SPA | 13.6 | - | 12.3 | 40° | La=Li+78 | 47"-197" | 1200-5000 | La | Inquire Now! |
| SPB | 17.0 | - | 16.5 | 40° | La=Li+105 | 63"-394" | 1600-10000 | La | Inquire Now! |
| SPC | 22.0 | - | 21.0 | 40° | La=Li+132 | 118"-492" | 3000-12500 | La | Inquire Now! |
