Applications
- For all industrial serpentine applications requiring reversal rotation in drive shafts.
- Specially used for textile drying machines.
Features

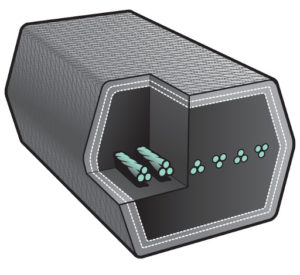

- Belt that enable power transmission on multiple axis by joining two general V-belt by their upper part.
- These belts have a unique deep grove ‘Double V’ section designs.
Products and Specifications
Click ‘Inquire Now’ to send us your requirement
| Product Type | Top Width | Height | Angle | Length Conversion | Size (inches) | Size (mm) | Factory Mark | |
|---|---|---|---|---|---|---|---|---|
| HAA | 13.0 | 10.0 | 40° | Li=La-63 | 38" - 197" | 965 - 5000 | Li | Inquire Now! |
| HBB | 17.0 | 13.0 | 40° | Li=La-82 | 39" - 197" | 1000 - 5000 | Li | Inquire Now! |
| HCC | 22.0 | 17.0 | 40° | Li=La-107 | 83" - 315" | 2100 - 8000 | Li | Inquire Now! |
