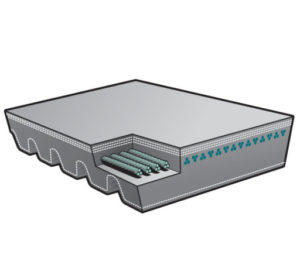

Power transmission belt for variable speed pulleys having separable parts.
Features
Industrial variable speed belts have simple structure belts, smooth transmission, small mechanical vibration, easy maintenance and are capable of continuously variable transmission.
Products and Specifications
Click ‘Inquire Now’ to send us your requirement
| Product Type | Top Width | Pitch Width | Height | Size (inches) | Size (mm) | Factory Mark | |
|---|---|---|---|---|---|---|---|
| W16 | 17.0 | 16.0 | 6.0 | 20" - 39" | 500 - 1000 | Lw | Inquire Now! |
| W20 | 21.0 | 20.0 | 7.0 | 22" - 49" | 560 - 1250 | Lw | Inquire Now! |
| W25 | 26.0 | 25.0 | 8.0 | 28" - 63" | 710 - 1600 | Lw | Inquire Now! |
| W31.5 | 33.0 | 31.5 | 10.0 | 35" - 79" | 900 - 2000 | Lw | Inquire Now! |
| W40 | 42.0 | 40.0 | 13.0 | 44" - 98" | 1120 - 2500 | Lw | Inquire Now! |
| W50 | 52.0 | 50.0 | 16.0 | 55" - 124" | 1400 - 3150 | Lw | Inquire Now! |
| W63 | 65.0 | 63.0 | 20.0 | 71" - 157" | 1800 - 4000 | Lw | Inquire Now! |
| W80 | 83.0 | 80.0 | 26.0 | 88" - 197" | 2240 - 5000 | Lw | Inquire Now! |
| W100 | 104.0 | 100.0 | 32.0 | 110" - 248" | 2800 - 6300 | Lw | Inquire Now! |
